# jan. 13, 2003

Technology + Simulation

At this moment you have had: an **introduction** and a **problem**
Other remarks:

- Homework: thinking about simulations and learning environments;
- Homework: Looking to the article about Simulation and Learning;
- Homework: Looking to the 27 parts for your simulation;
- Today: Some important aspects of models;
- Homework this week: looking and reading parts of my book;
- Deadline task 1, writing a paper about simulation: March 17, 2003;
- Deadline task 2, develop a applet as object in an educational website: March 3, 2003;

About models

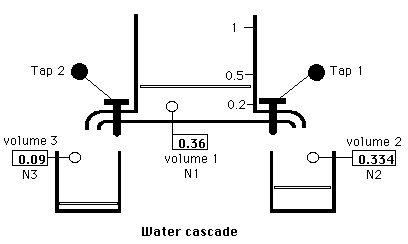

**Conceptual representation of a mathematical model ('conceptual model') (concrete) (1)**

**Conceptual representation of a mathematical model ('conceptual model') (concrete) (2)**

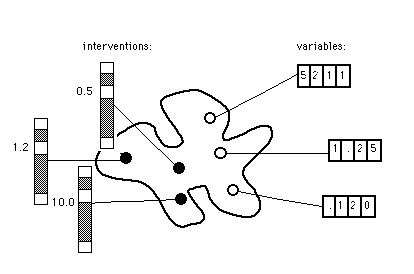

**Conceptual representation of a mathematical model ('conceptual model') (abstract)**

**The same: with scrollbars.**

**Black box of a model**

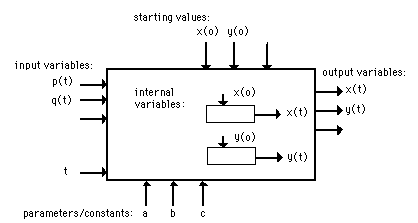

**Block scheme or black box model; variables (a), starting values (b), parameters and constants**

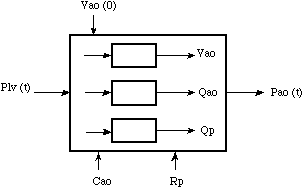

**Block scheme of the pressure changes in black box model of the aorta.**

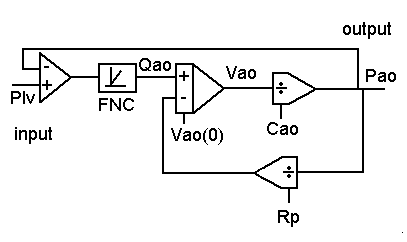

**Analogue scheme of the pressure changes in the aorta. In such schemes you can see the 'cause' in relation to the 'result'.**

**Analogue components (e-Book, Min, 1997-2003).**

**Repeat**

t = t + dt;

Plv = Plvmax*Math.sin(2 * 3.14 * f * t);

if (Plv < 0.0) { Plv = 0.0}

Qao = 33 * (Plv - Pao);

if (Plv < Pao) {Qao = 0.0}

Pao = Vao / Cao;

dVaodt = Qao - Pao / RP;

Vao = Vao + dVaodt * dt;

**Until t > Tmax**

**Java way of notation.**

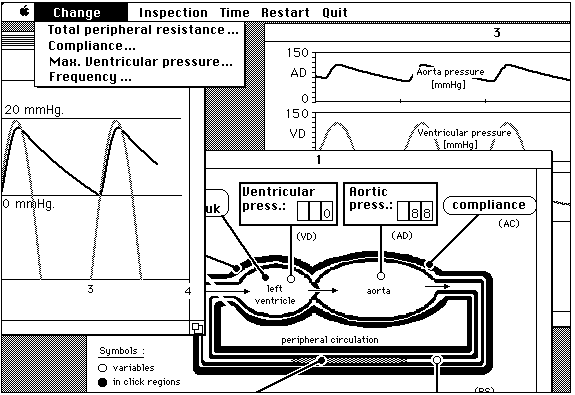

**The complete computer simulation program AORTA. One window with the conceptual model and 'inclick regions' and two 'output windows' with different graphical presentations of the model variables.**

click here

**The complete computer simulation program AORTA, version Rinske Stelwegen, 2001.**

click here

**The complete computer simulation program AORTA, versie R. Min, met DHTML, 2002.**

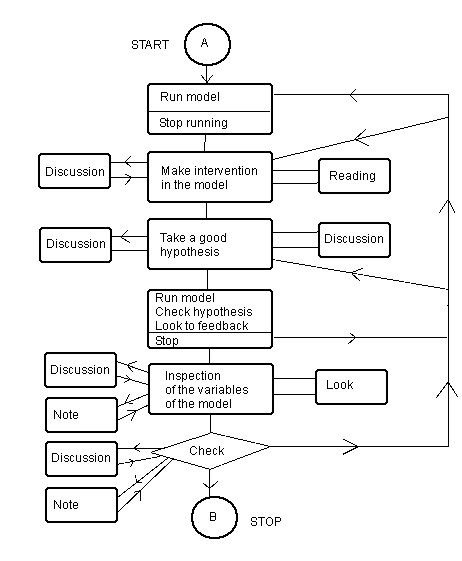

**Learning model. There are six learning models in learning with simulations.**
Test

**Make a black box model of this (with all the variables and all the parameters !)**

**Repeat**

t = t + dt;

Plv = Plvmax*Math.sin(2 * 3.14 * f * t);

if (Plv < 0.0) { Plv = 0.0}

Qao = 33 * (Plv - Pao);

if (Plv < Pao) {Qao = 0.0}

Pao = Vao / Cao;

dVaodt = Qao - Pao / RP;

Vao = Vao + dVaodt * dt;

**Until t > Tmax**

**Repeat**

t = t + dt;

UB = Ucc*R2/(R1+R2);

URE = URE + ((UB - 0.7) - URE)*0.03;

IR2 = UB/R2;

IR1 = (Ucc - UB)/R1;

IE0 = URE/RE;

IC0 = IE0;

IB0 = 0.0;

UC = Ucc - IC0*RC;

UCE = UC - URE;

ui = 100*A * Math.sin(2* 3.1418 * f * t);

if (ui > A) {ui = A;}

if (ui < -A) {ui = -A;}

ui1 = ui1 + (ui - ui1)*0.2;

i1 = ui/R1;

i2 = ui/R2;

ib = i1-i2;

ic = -beta*ib;

uo = -40*IC0*RC*ui1;

Uuit = UC + uo;

Uin = UB + 15.0*ui;

Error = Ucc - (IC0*RC + UCE + URE);

Controle = R1*IR1+R2*IR2;

**Until t > Tmax**

**The conceptual scheme; left-up.**

**The analogue way of notation; the analogue scheme.**
Enschede, jan. 13, 2003
